Understanding Custom Buttons for Restaurants

  • Last Updated: March 10, 2021

Merchants will love a quicker check-out when they customize their register with custom buttons!  Custom buttons can be set-up to execute function, quickly add items or services to an order, and apply discounts. This topic shows you a map of 5 locations at the Register where you can add/remove custom buttons.  After reviewing button locations, learn what you can program custom buttons to do:  Functions, Items, Services, and Discounts/Other.

Custom button settings are accessed through Register Preferences.

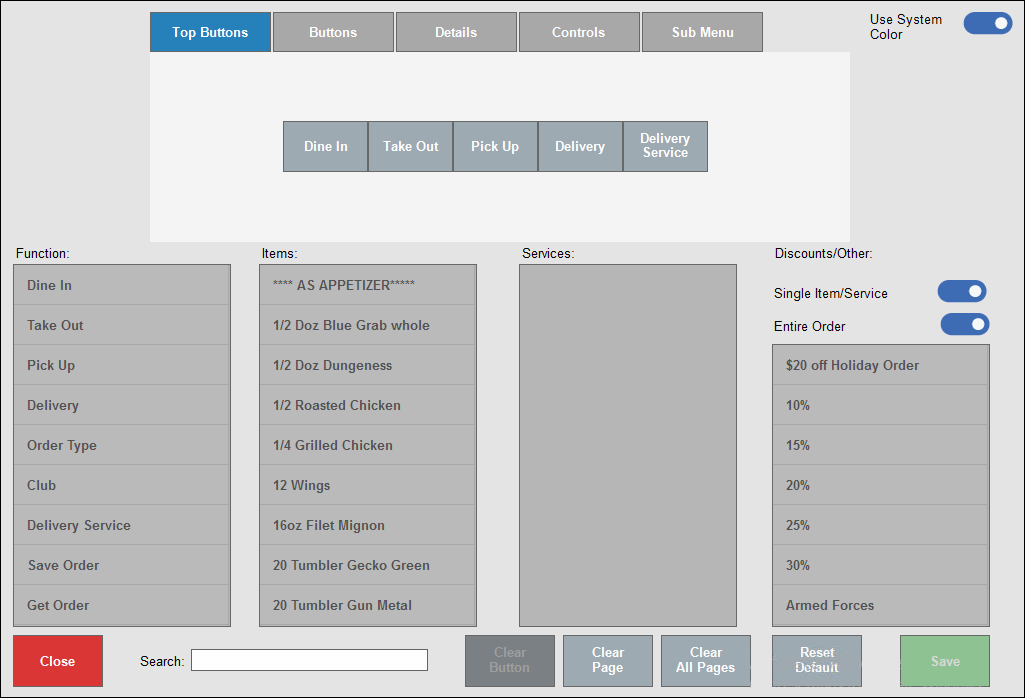

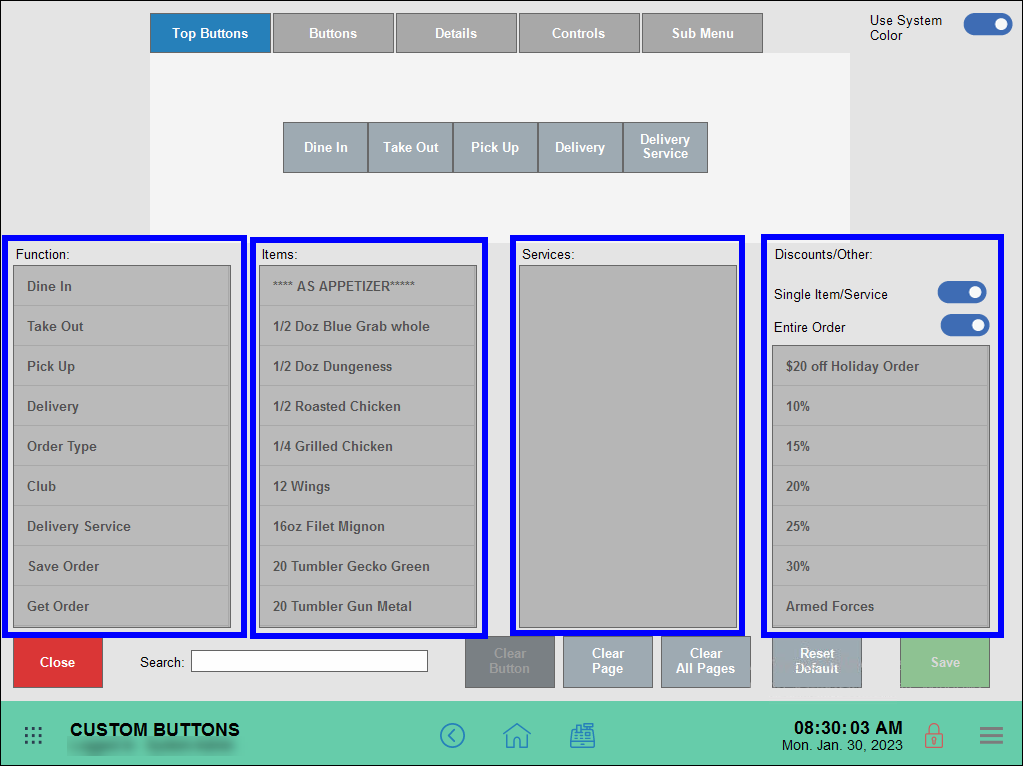

This is what custom button settings look like:

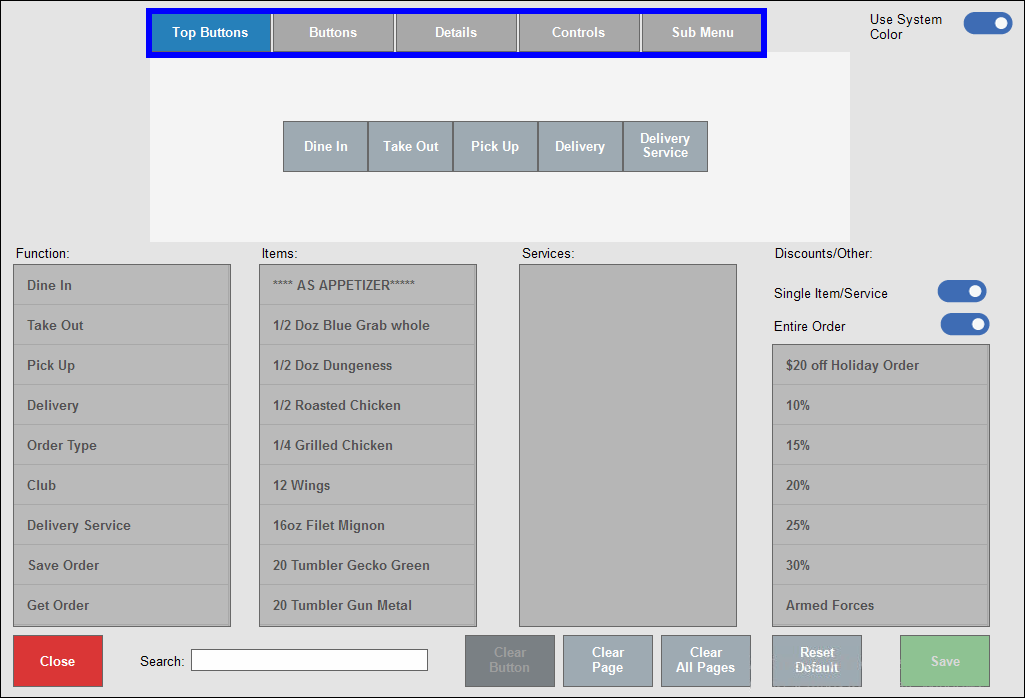

There are 5 areas of the register to which custom buttons can be added. Each register area corresponds to a tab within custom buttons settings:
“Top Buttons”,  “Buttons”, “Details”, “Controls”, and “Sub Menu”

Top Buttons correspond to Register Tab/Order Types

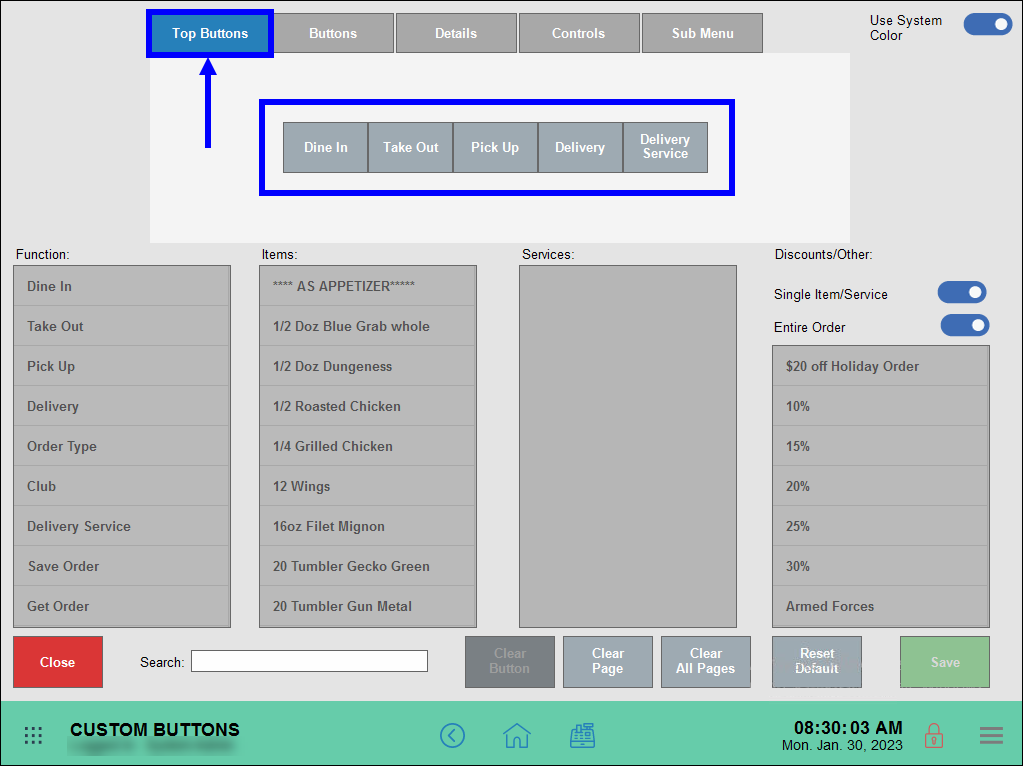

Buttons found on the “Top Buttons” tab…

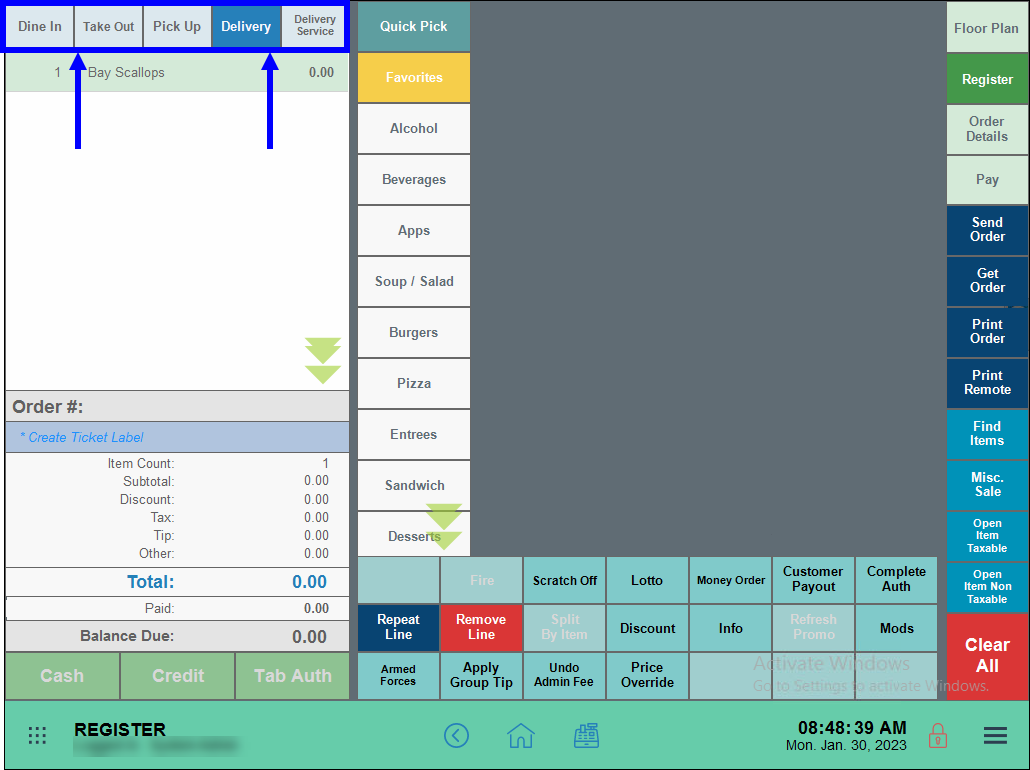

…correspond to default order types found on the Register tab.

  • Order types such as “Dine In”, “Take out”, “Pickup” and “Delivery” are generally displayed by restaurants, pizzerias, and quick service restaurants.
  • Order types displayed can be customized through the use of custom buttons.  For example, a quick service restaurant can apply these custom order types:  Window 1, Window 2, Dine In, Delivery
  • Retailers can choose to remove/clear these buttons through the use of custom buttons.


Buttons correspond to Register Tab

Buttons found on the “Buttons” tab…

…correspond to the red and grey default buttons found on the Register Tab.

  • Default functions on the red and grey rows vary by business type. For example, restaurants display a “Tab Auth” button by default.
  • Any functions on these buttons can be moved to a different tab or removed.
  • Restaurants, pizzerias, and quick-service restaurants have two lines enabled by default. A third line can be enabled.


Details correspond to Details Tab/Default Functions

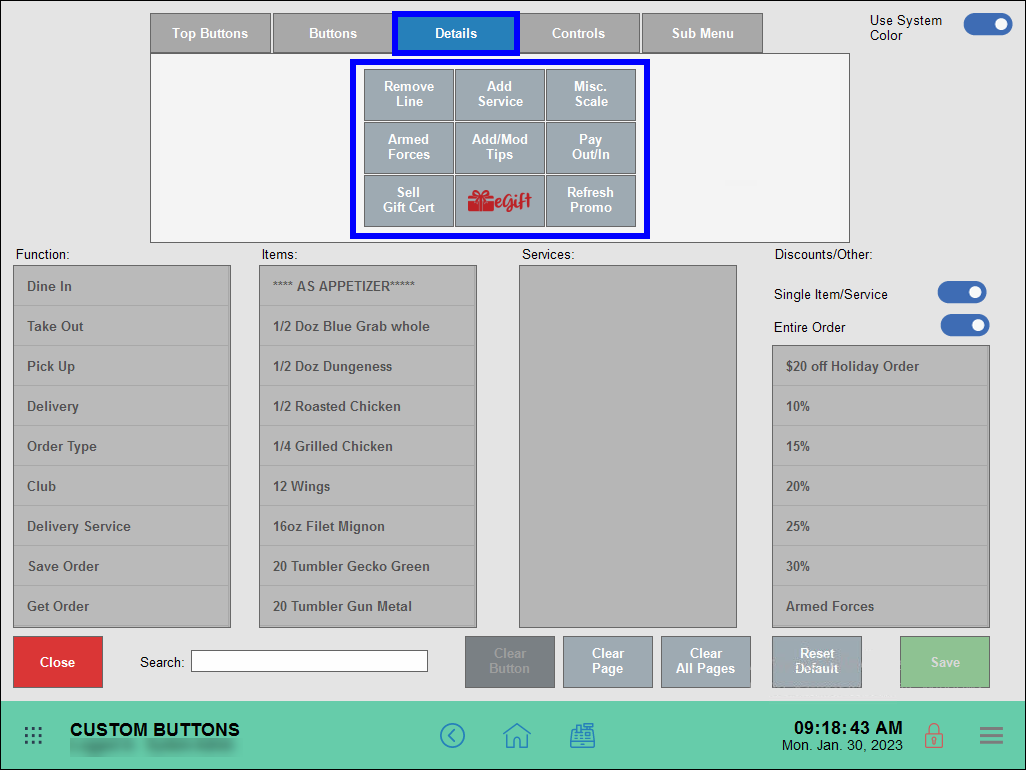

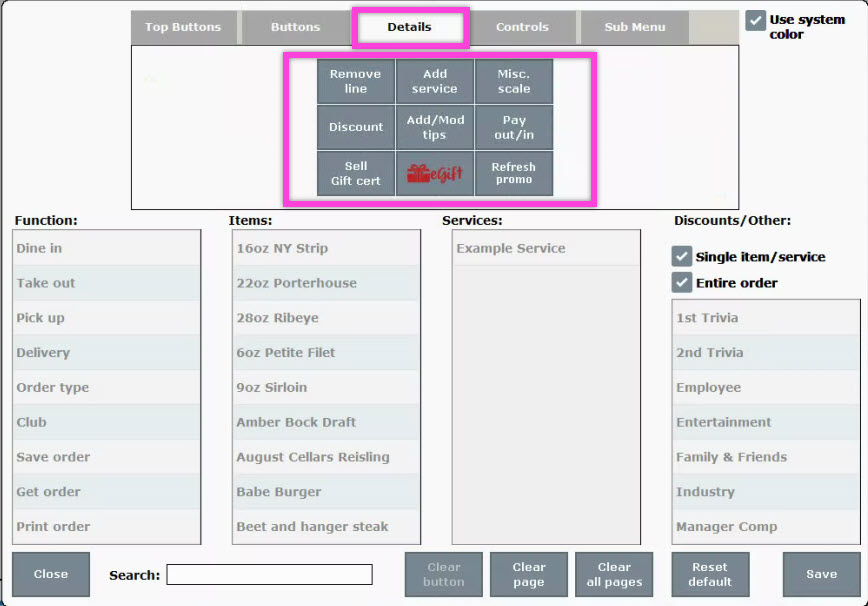

Buttons found on the “Details” tab…

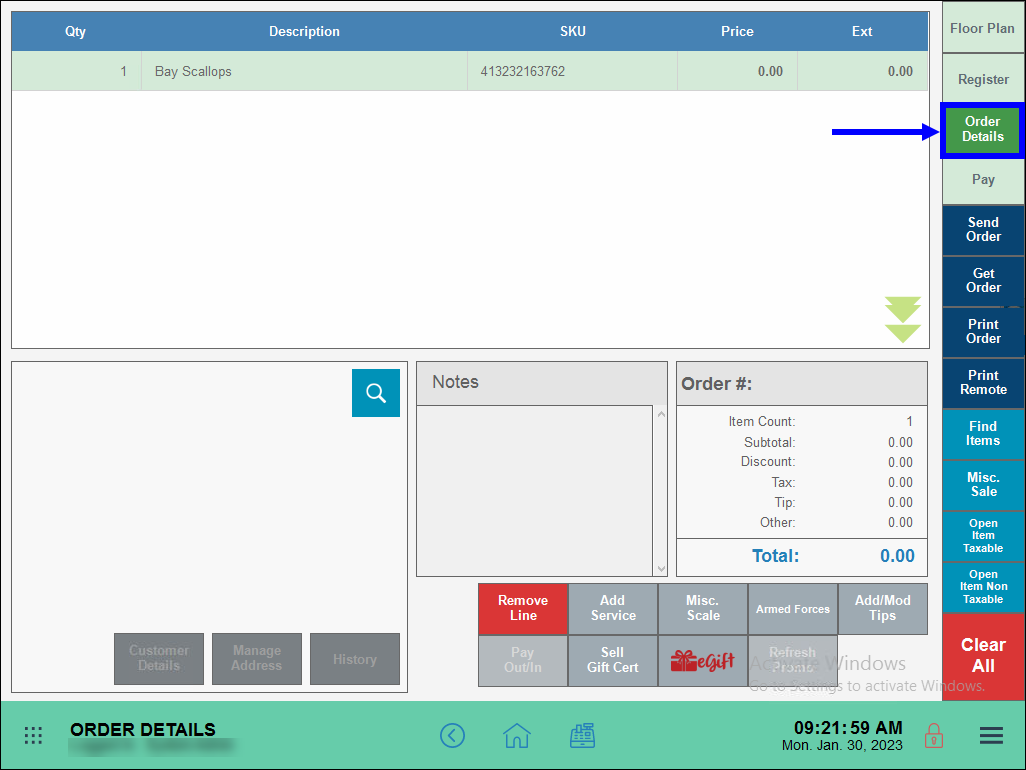

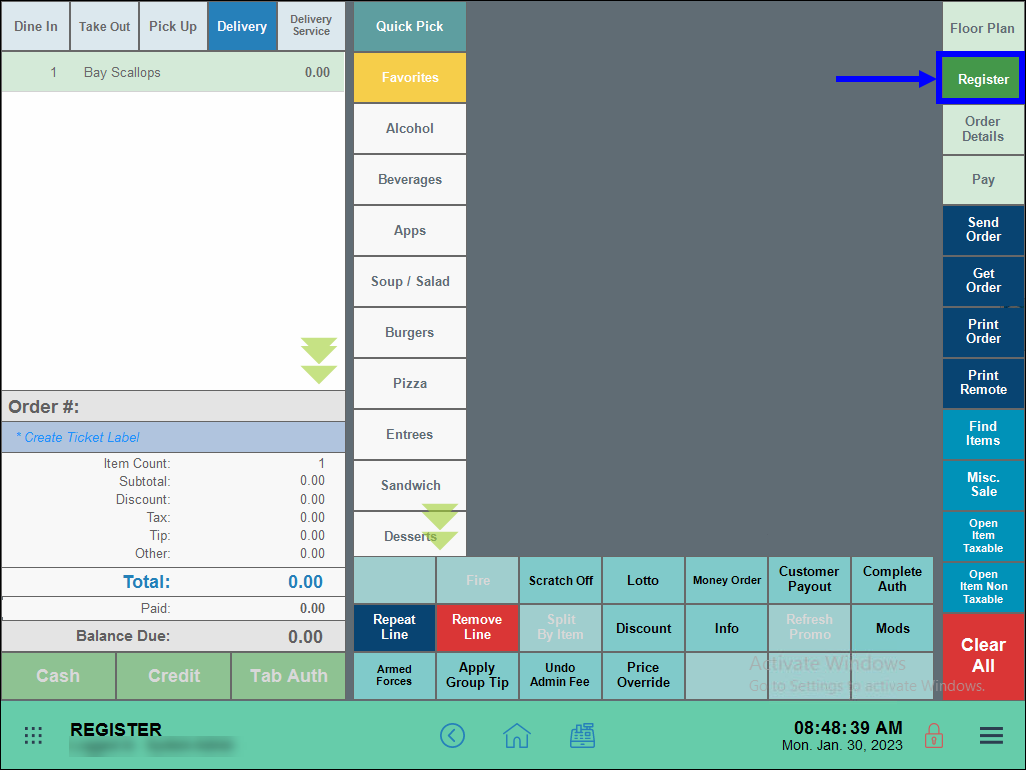

…correspond to the default functions found on the Register’s Details tab.

  • Any of these functions can be moved to a different tab or removed.


Controls correspond to Register Default Control Functions

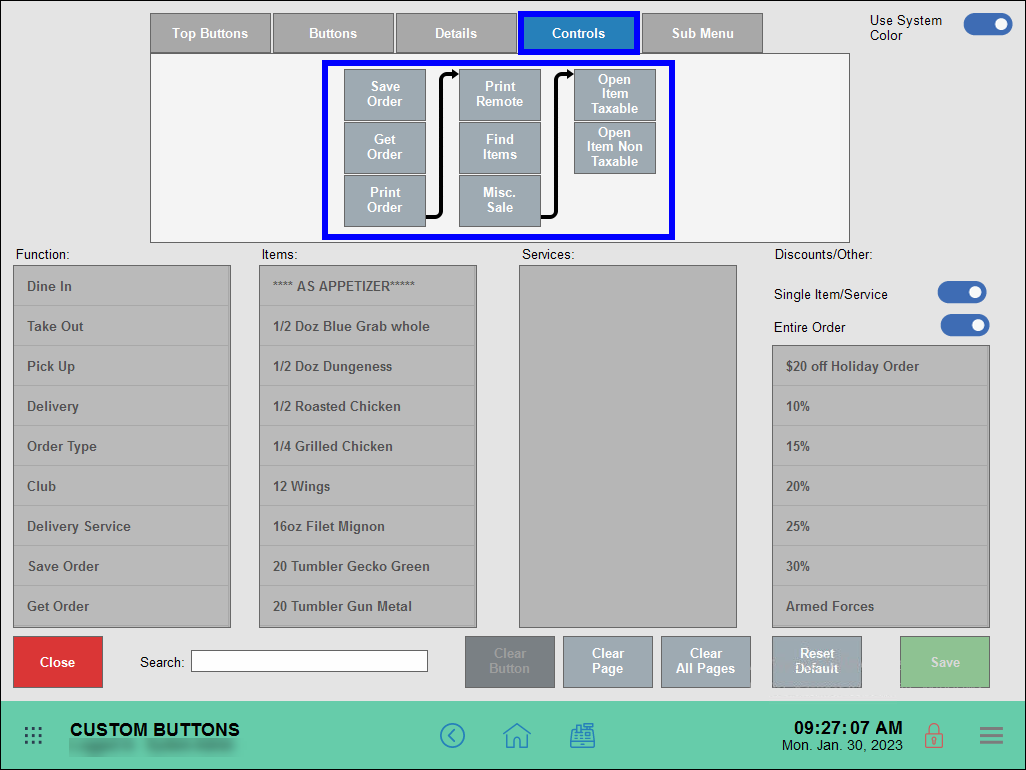

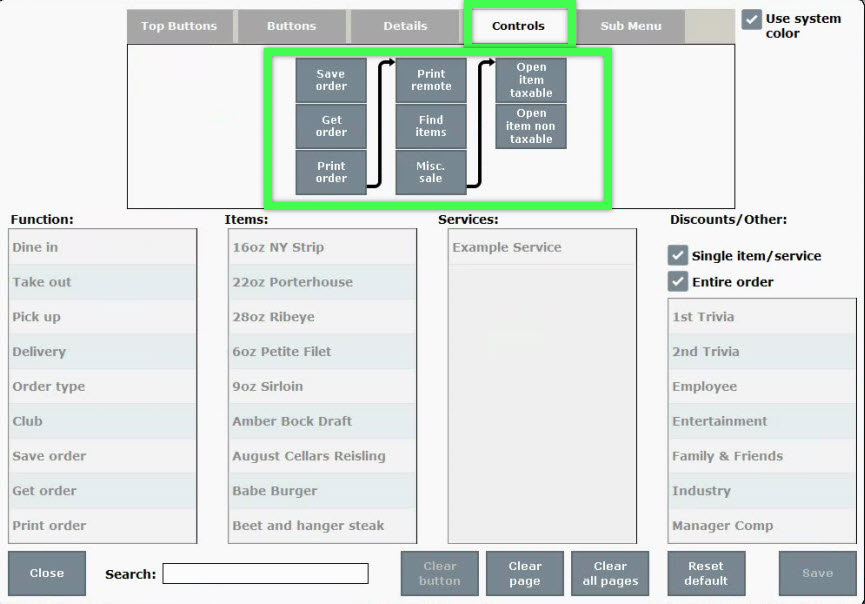

Buttons found on the “Controls” tab…

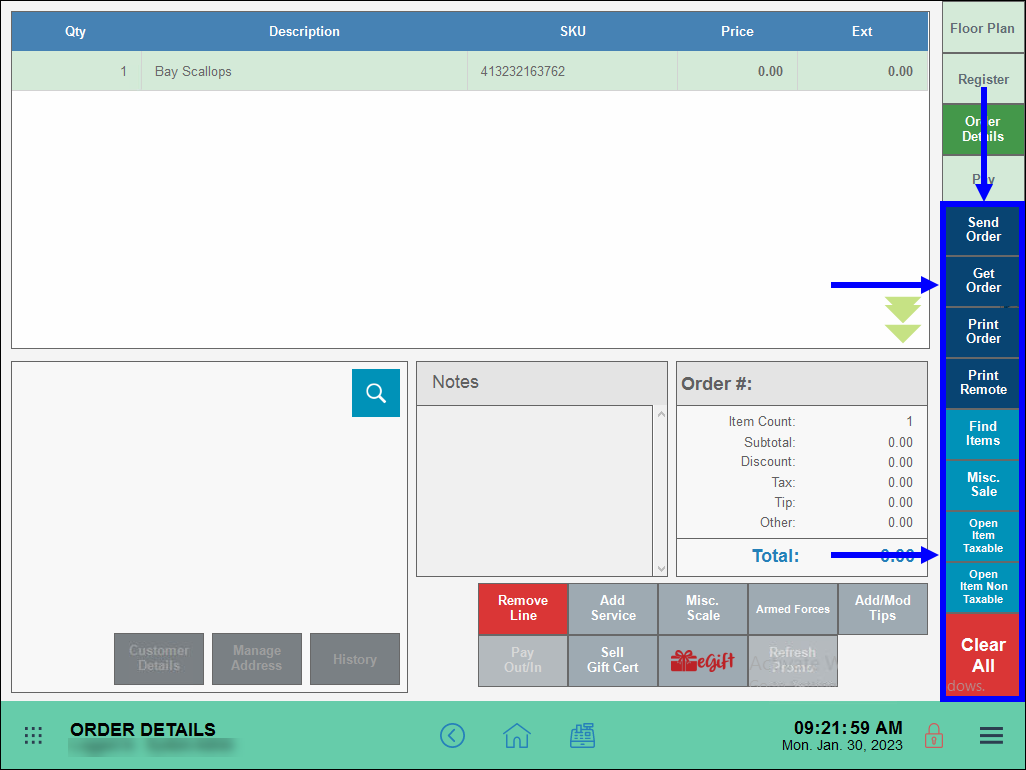

…correspond to the default control functions found at the register.

  • Control functions appear at the register regardless of the tab selected.
  • Any of these functions can be moved to a different tab or removed.


Sub Menu corresponds to Register Sub Menu

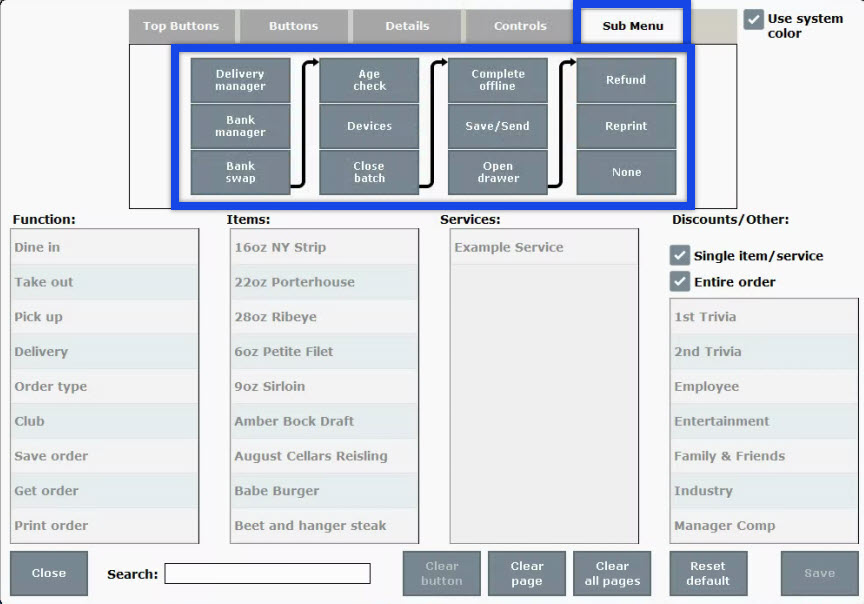

Custom buttons “Sub Menu” tab and the functions within…

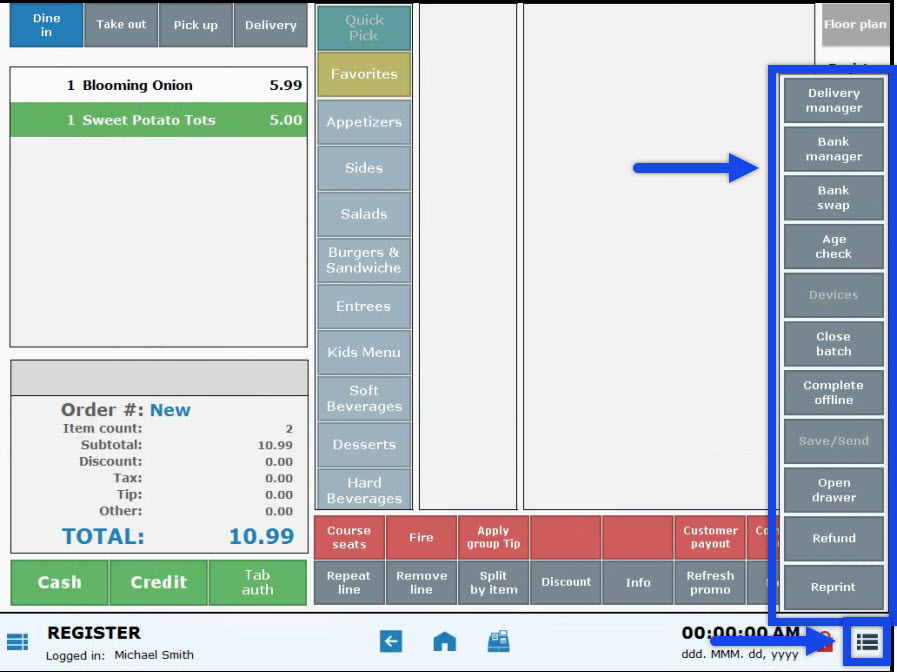

…correspond to the default functions found within the register’s sub menu

  • These functions can be seen at the register by selecting the sub-menuon the lower right-hand corner.
  • Any of these functions can be moved to a different tab or removed.

Custom Buttons can be set-up to do the following:
Functions, Items, Services, Discounts/Other

Functions

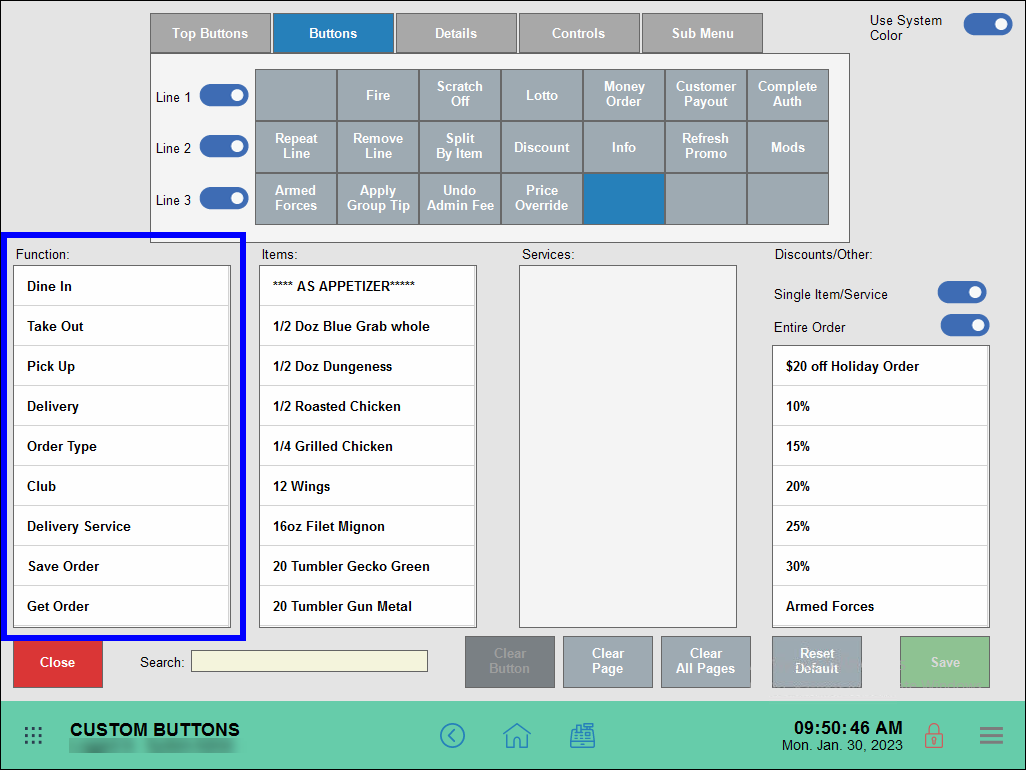

All functions that can be moved, added or removed from the register are found on the Functions list. Functions may vary by business type.

This is a complete list of functions available:

  • Dine in
  • Take out
  • Delivery
  • Order type
  • Club
  • Save order
  • Get order
  • Print order
  • Print remote
  • Find items
  • Misc sale
  • Open item taxable
  • Open item non taxable
  • To-Go item
  • Print To-Go
  • Customer Payout
  • Quick payout
  • Course seats
  • Fire
  • Fire Now
  • Apply group tip
  • Complete auth
  • Reassign
  • Take
  • Repeat line
  • Remove line
  • Split by item
  • Discount
  • Info
  • Refresh promo
  • Mods
  • Price override
  • Undo customer srv fee
  • Tax exempt item
  • Find customer
  • Add service
  • Misc. scale
  • Add/Mod tips
  • Pay out/in
  • Sell Gift cert
  • eGift solutions
  • Check balance
  • Delivery manager
  • Bank manager
  • Bank swap
  • Age check
  • Devices
  • Close batch
  • Complete offline
  • Save/Send
  • Open drawer
  • Refund
  • Note: Special Functions which are not available at the Register by default can be added via custom buttons. Special Functions include: Order Type, Club, To-Go Item, Print To-Go, Quick Payout, Price Override, Undo Customer Service Fee, and Tax Exempt Item.  See:  Custom Buttons: Special Functions at the Register

  • See: Custom Buttons:  Move a Function at the Register and Custom Buttons:  Remove a Function from the Register


Items

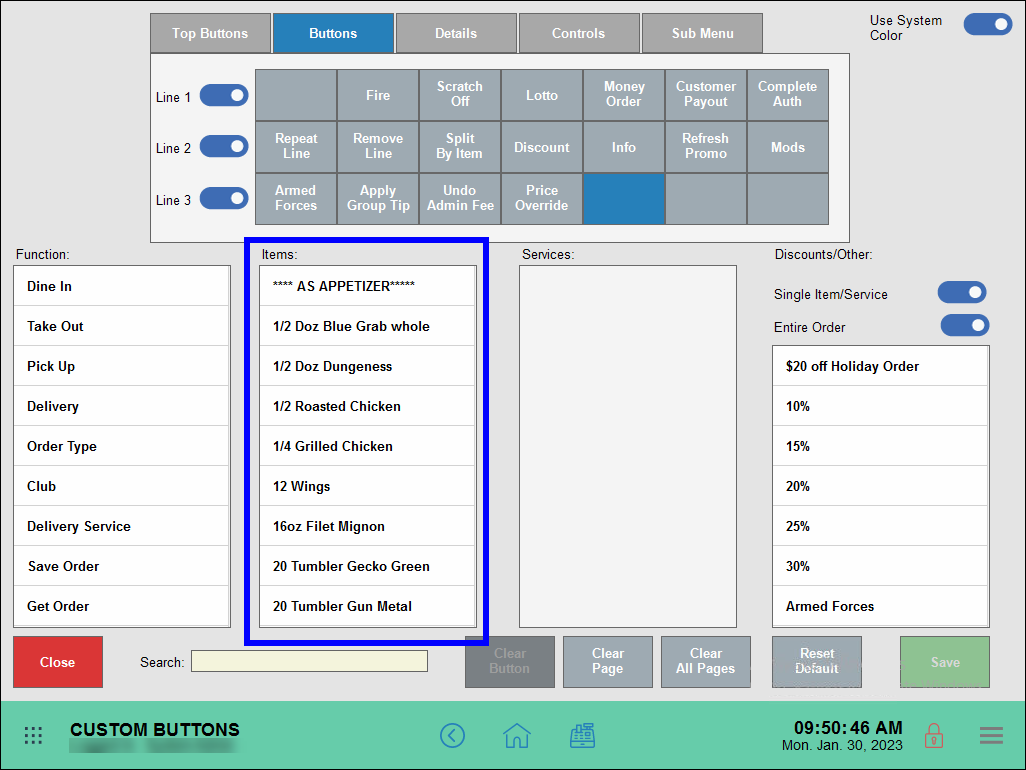

An item can be added to the Register for quick access. All items that are active in the merchant’s inventory can be found on the Items list. The items available on this list are unique to this restaurant merchant:


  • See: Custom Buttons: Add an Item or Service to the Register


Services

A service can be added to the register for quick access. All services that are active in the merchant’s inventory can be found on the Services list. Services will vary by merchant; there are no active services available on this restaurant merchant’s list:


  • See: Custom Buttons: Add an Item or Service to the Register

Discounts/Other

All whole order discounts, promos, service charges, and single line discounts are available on the Discounts/Other list.
This is a sample discount/promo list for a restaurant merchant:

  • Only active discounts/promos/service charges display on the list.
  • Listings will vary based on the merchant.
  • Select from “Single item/service” and “Entire order”.

  • See: Custom Buttons: Add a Discount to the Register
